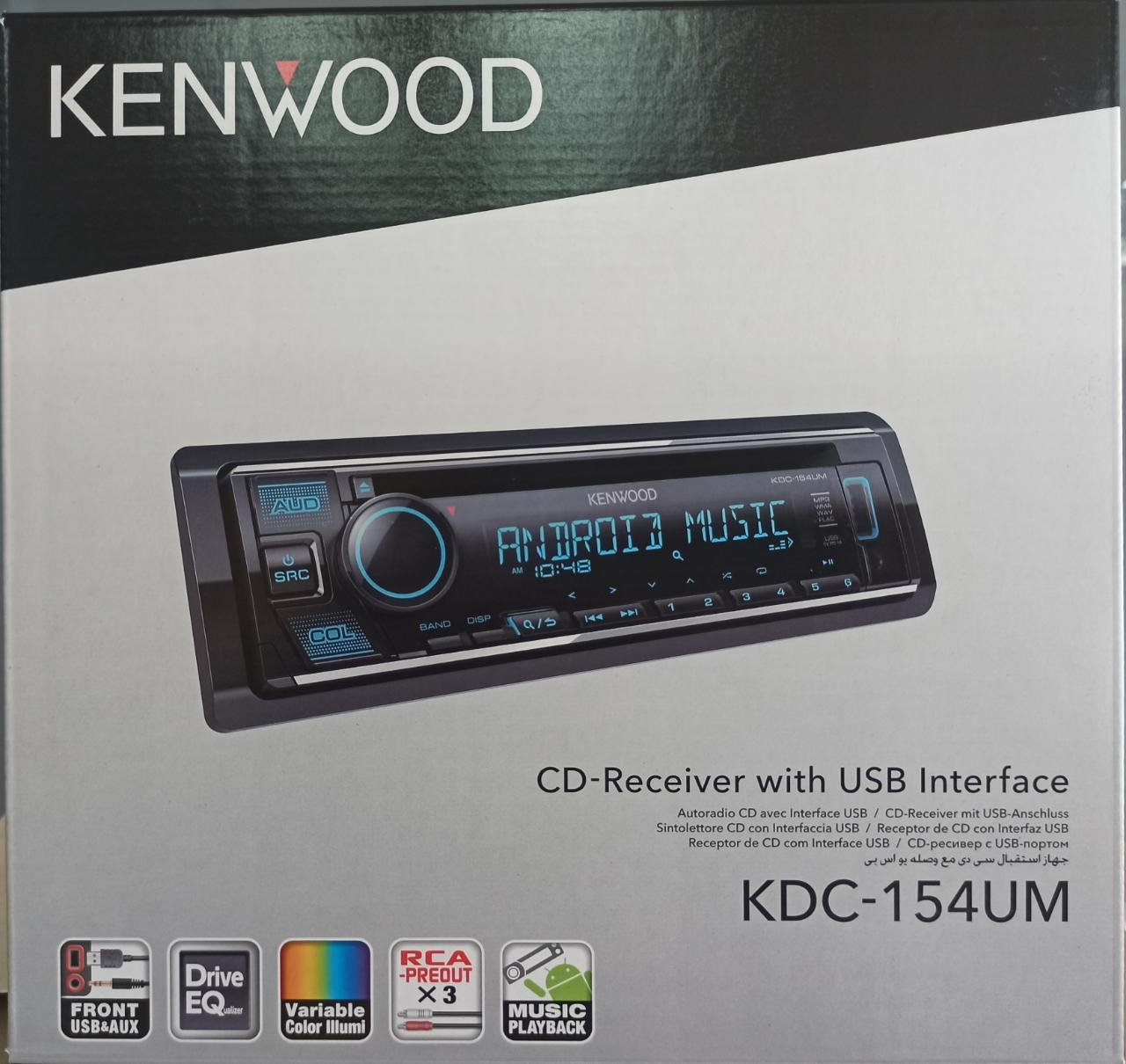

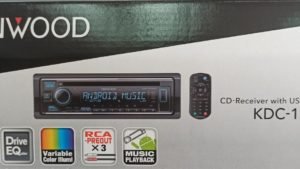

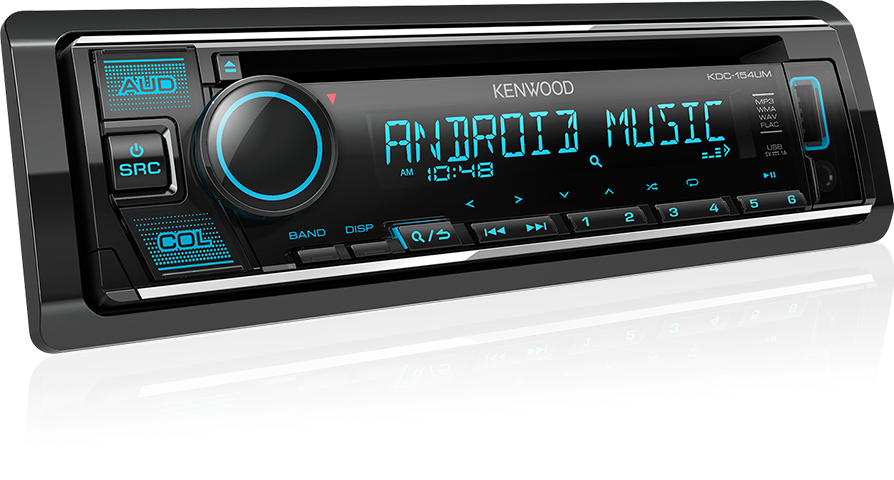

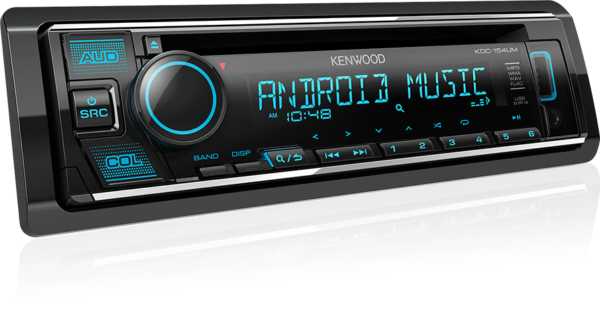

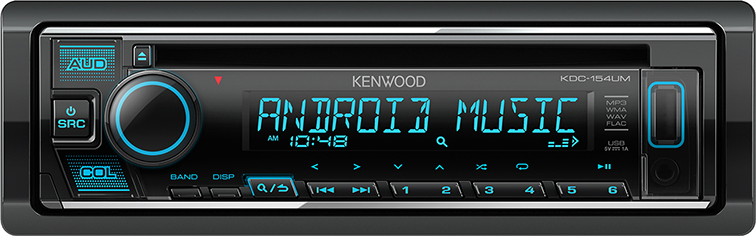

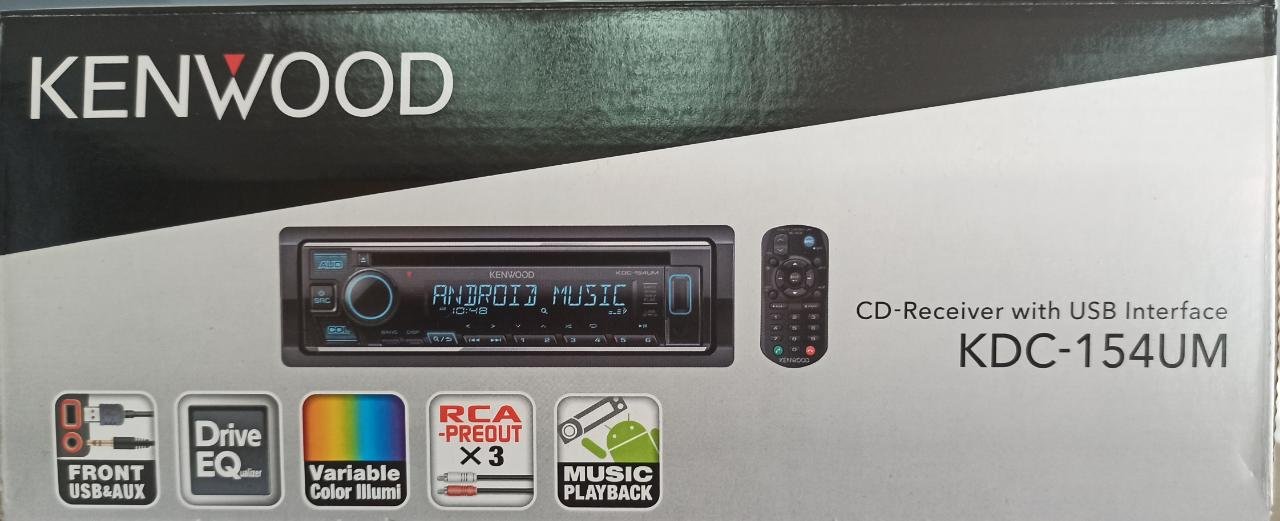

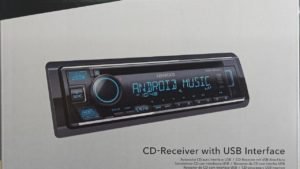

KDC-154UM
Radio con CD, USB, 3-RCA
Cambio Colores.
Marca : Kenwood
Especificaciones de radio Kenwood KDC-154UM
| FM | Frequency Range(MHz) (Frequency step) |
87.5MHz to 108.0MHz (50kHz) |
|
|---|---|---|---|
| Usable Sensitivity S/N 30dB |
0.71μV/75Ω | ||
| Quieting Sensitivity DIN S/N 46dB |
(2.0μV/75Ω） | ||
| Frequency Response (±3.0dB) |
30Hz to 15kHz | ||
| S/N(dB) | 64.0dB(MONO) | ||
| Stereo Separation | 40dB(1kHz) | ||
| MW (AM) |
Frequency Range(kHz) (Frequency step) |
531kHz to 1602kHz (9kHz) |
|
| Usable Sensitivity (S/N 20dB) |
28.2μV | ||
| CD | Laser Diode | GaAlAs | |
| Digital Filter(D/A) | 8 Times OverSampling | ||
| Spindle Speed | 500 to 200rpm (CLV) | ||
| Wow & Flutter | Below Mesurable Limit | ||
| Frequency Response | 20Hz to 20kHz(±1dB) | ||
| Total Harmonic Distortion | 0.01%(1kHz) | ||
| S/N Ratio (dB) | 92dB(1kHz) | ||
| Dynamic Range | 88dB | ||
| Channel Separation | 83dB | ||
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | ||
| WMA Decode | Compliant with WINDOWS MEDIA AUDIO | ||
| AAC Decode | – | ||
| WAV Decode | – | ||
| Preout Level(mV)/Load -Unbalanced | 2500mV/10kΩ(CD) | ||
| Preout Impedance(Ω) | =<600Ω | ||
| Speaker Impedance(Ω) | 4 to 8Ω | ||
| USB I/F | USB | USB 1.1 / 2.0 Full Speed | |
| File System | FAT12 / 16 / 32 | ||
| Maximum Supply current | DC5V(DC logo) 1A | ||
| MP3 decode | Compliant with MPEG-1/2 Audio Layer-3 | ||
| WMA decode | Compliant with Windows Media Audio | ||
| AAC Decode | – | ||
| WAV Decode | Linear-PCM | ||
| FLAC Decode | FLAC file (Up to 48kHz/16bit) | ||
| AUX Input |
Frequency Response | 20 to 20kHz ±3dB | |
| Input Maximum Voltage | 1000mV | ||
| Input Impedance | 30kΩ | ||
| AMP | PWR(MAX) | 50Wx4 | |
| Full Bandwidth Power (at less than 1%THD) |
22Wx4 | ||
| TONE | Bass | 100Hz ±8dB | |
| Middle | 2.5kHz ±8dB | ||
| Treble | 12.5kHz ±8dB | ||
| GENE | Operating voltage | 12V DC car battery | |
| Installation Size | (W) | 182mm | |
| (H) | 53mm | ||
| (D) | 158mm | ||
| Net Weight (Trim plate and Mounting sleeve: Included) |
1.2(kg) | ||
