PPS4-8

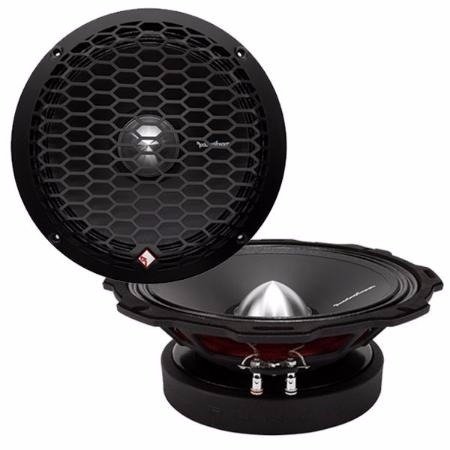

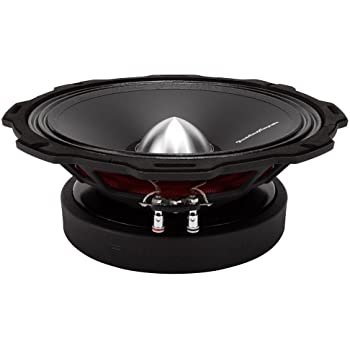

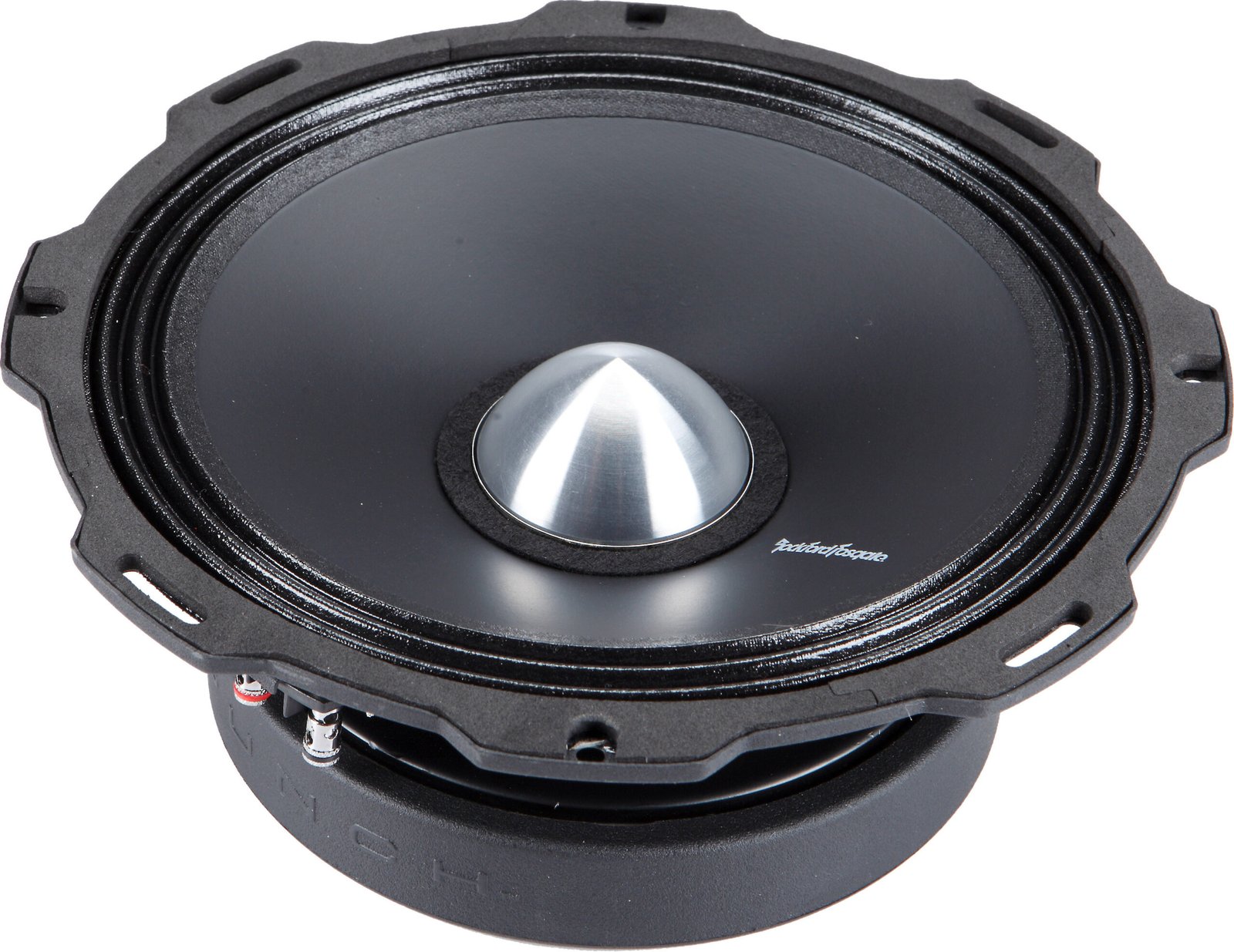

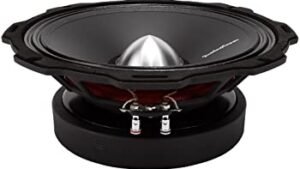

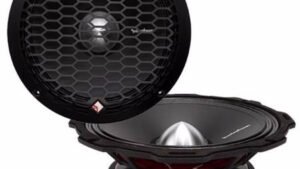

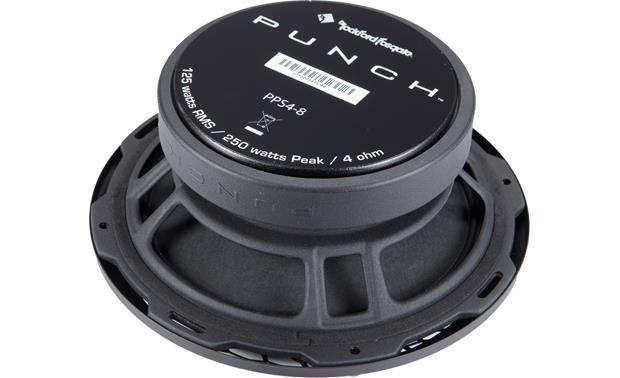

Punch Pro 8″ 4-Ohm Midrange/Midbass PPS4-8

The PPS4-8 Punch Pro is a 8″ midrange loudspeaker engineered for high SPL (Sound Pressure Level) conditions.
The oversized motor structure and high temperature voice coil, combined with a fiber reinforced paper cone and corrugated treated cloth surround create the foundation for a highly sensitive speaker that can handle plenty of power. You’ll be proud, because these things are loud! Package includes protective grilles.

• Stamp-cast aluminum frame
• All Metal Input Spring Terminal Connection
• Billet stock machined aluminum phase plug
• Corrugated treated cloth surround
• Fatigue and tear resistant poly cotton spider
• Fiber reinforced high strength paper cone with treated “W” style surround
• Grilles and mounting hardware included
• High temp aluminum voice coil
• Periodic-stitched fatigue resistant lead wire
• Sold as individual units (not in pairs)

Speaker Type : Midrange

Power Handling (RMS) : 125 Watts RMS (250 Watts Max)

Mounting Hardware : Yes

Shipping Weight : 7.75 Lbs. (3.51 Kg.)

Midrange Mounting Depth : 2.91″ (74 mm)

Grille/Trim Ring Included : Yes

Midrange Size (Nominal Diameter) : 8″

Frequency Response (Hz) : 80Hz-5kHz

Sensitivity (dB @ 1W/1M) : 94.5

Nominal Impedance (Ohms) : 4-Ohm
